Inclinometer Module
Inclinometer Module
Regular price
£45.00 GBP
Regular price
Sale price
£45.00 GBP
Unit price
per
Taxes included.
The Incline Sensor Module is a compact, highly accurate pitch and roll level sensor with a 1 click calibration process. It is designed to be low in power consumption (<25ma) and integrate directly with Home Assistant. It can be located anywhere with a power supply 12-30v

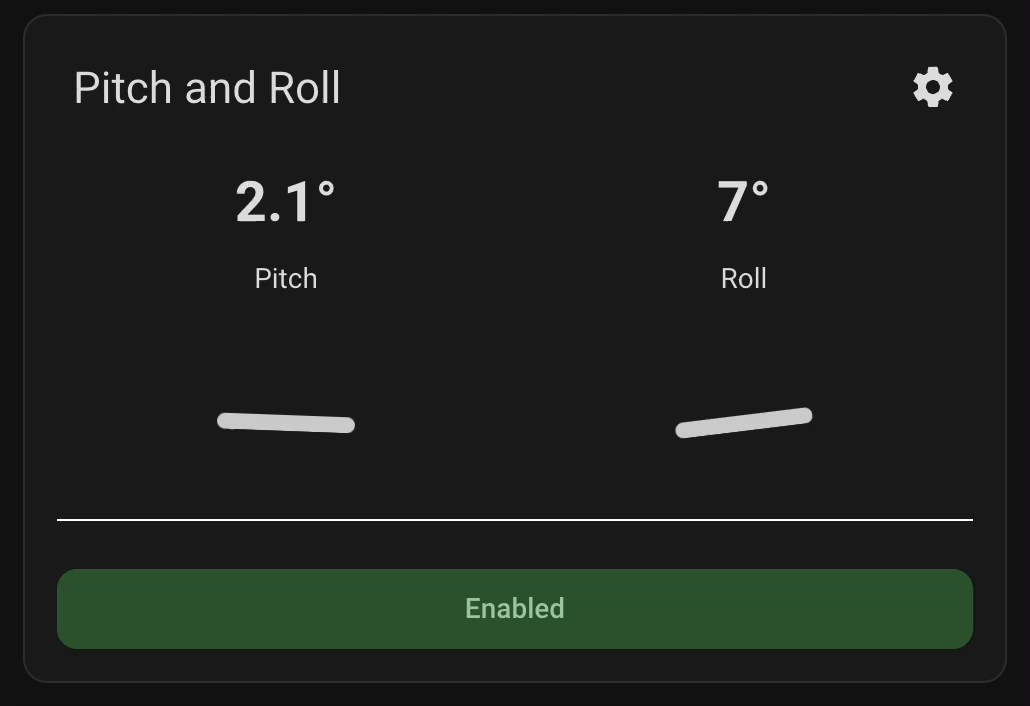

With the SmartVan Incline Sensor Module you can easily find level in both axis.
Don't have Home Assistant yet? You can still view your readings by connecting to the module directly over wifi. Or check out our other products to get you up and running with a home assistant dashboard.
What is it?

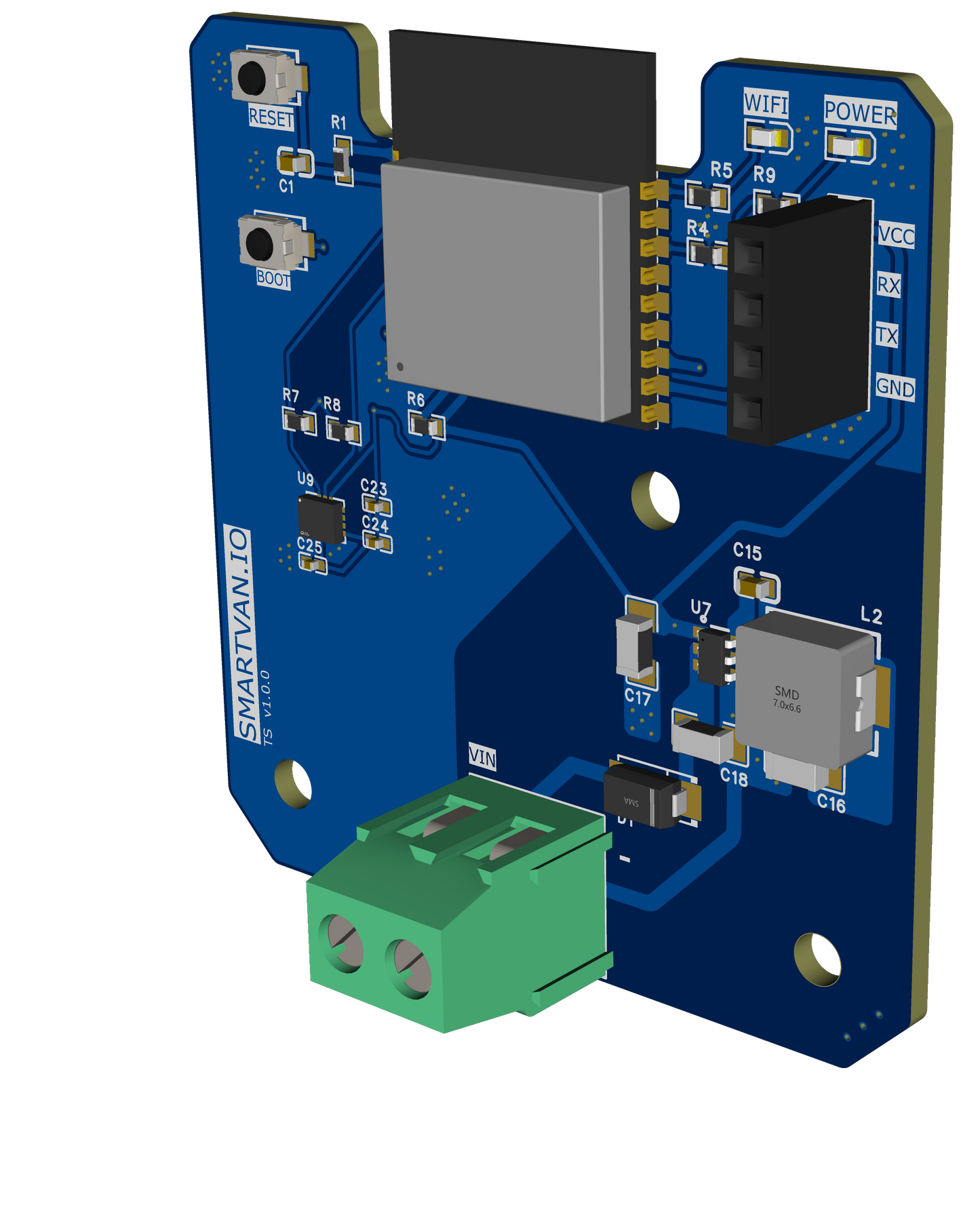

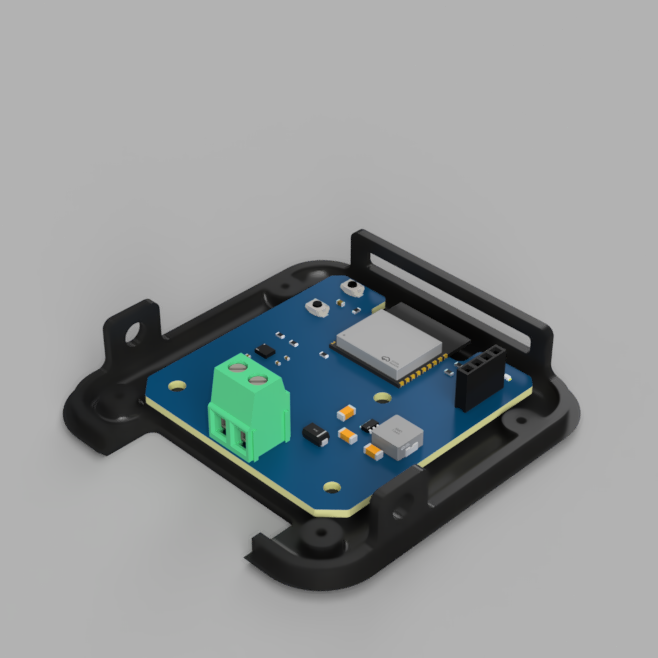

An ESP32 based PCB with an onboard gyroscope / accelerometer that will output the pitch and roll angle of your van.
Features
- Onboard regulator so you can connect directly to your electrical system 12v - 32v
- Easy setup and one step calibration process
- Seamless integration with Home Assistant over wifi using the onboard ESP32-C3 MCU

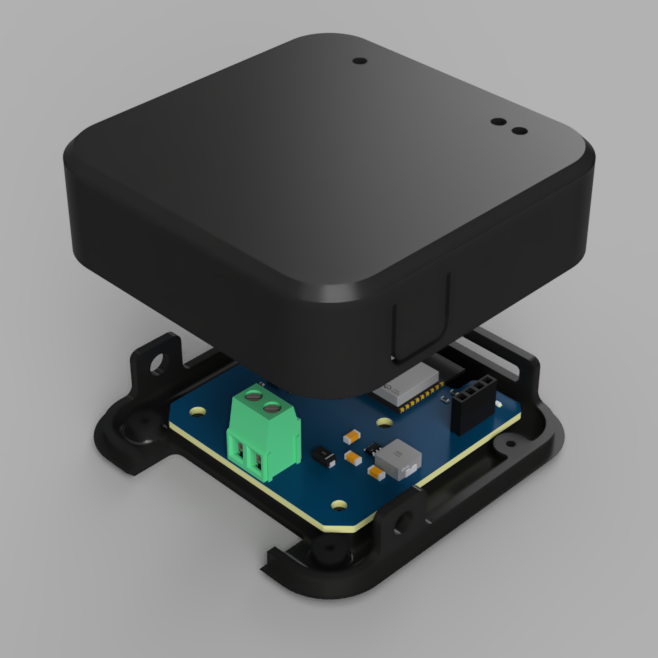

- Black 3D printed enclosure that completely hides wires
- Low power consumption, ~20mA
- Zero config, super easy setup in HomeAssistant
Additional info
